How to Install & Automate SSL Certificates on Kubernetes and NGINX Ingress Using ACME

Prerequisites

Mandatory (required for ACME automation)

These requirements apply regardless of how the Kubernetes cluster is built. You must have the following in place to issue and auto-renew SSL/TLS certificates using ACME and cert-manager:

• Working Kubernetes cluster
• kubectl access to the cluster
• An Ingress controller installed and publicly reachable on port 80
• A domain with a DNS A record pointing to the cluster’s external IP
• ACME subscription with External Account Binding (EAB) credentials (Key ID and HMAC key)
• ACME server directory URL

Environment Used in This Guide (Reference Only)

The steps and examples in this guide were validated using the environment below. Users do not need to match this setup exactly.

• Ubuntu 22.04 node
• Single-node Kubernetes cluster initialized with kubeadm
• containerd runtime
• NGINX Ingress Controller
• MetalLB for external IP assignment

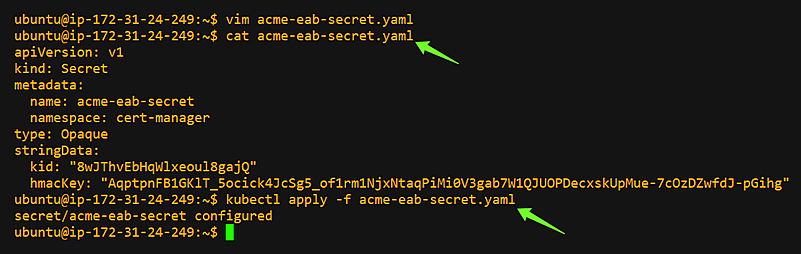

Step 2 - Create EAB secret

Store your External Account Binding (EAB) credentials for the ClusterIssuer. Replace ALL CAPS placeholders before applying.

1. Create YAML file acme-eab-secret.yaml (file content)

                                               apiVersion:v1
                                               kind:Secret
                                               metadata:
                                                 name:acme-eab-secret
                                                 namespace:cert-manager
                                               type:Opaque
                                               stringData:
                                                 kid:"EAB_KID"
                                                 hmacKey:"EAB_HMAC_KEY"


2. Apply the secret

                                               kubectl apply -f acme-eab-secret.yaml
                                               # OR
                                               kubectl create secret generic acme-eab-secret \
                                               --namespace cert-manager \
                                               --from-literal=kid="EAB_KID" \
                                               --from-literal=hmacKey="EAB_HMAC_KEY"


Replace these placeholders with your own values:

• EAB_KID External Account Binding Key ID
• EAB_HMAC_KEY External Account Binding HMAC Key

Step 3 - Create ClusterIssuer for ACME + EAB (HTTP-01)

Define a cluster-wide ACME issuer that uses your CA's ACME server and EAB secret for account registration. This configuration uses HTTP-01 challenge solving via NGINX Ingress.

1. Create YAML file cluster-issuer.yaml

                                               apiVersion:cert-manager.io/v1
                                               kind:ClusterIssuer
                                               metadata:
                                                 name:sectigo-prod
                                               spec:
                                                 acme:
                                                   email:ACCOUNT_EMAIL
                                                   server:SERVER
                                                   privateKeySecretRef:
                                                     name:sectigo-prod
                                                   externalAccountBinding:
                                                     keyID:EAB_KID
                                                     keySecretRef:
                                                       name:acme-eab-secret
                                                       key:hmacKey
                                                   solvers:
                                                     - http01:
                                                       ingress:
                                                         class:nginx



   Replace these placeholders with your own values:

   • ACCOUNT_EMAIL - Email for ACME account (notifications)
   • SERVER - ACME directory URL (e.g., https://acme.sectigo.com/v2/DV)
   • EAB_KID - External Account Binding Key ID
2. Apply ClusterIssuer

                                               kubectl apply -f cluster-issuer.yaml


3. Verify ClusterIssuer Registration

                                               kubectl describe clusterissuer sectigo-prod
                                               # look for Status: Ready=True and events showing registration


Step 4 - Create Ingress for HTTP-01 + TLS

Create an Ingress with cert-manager annotations to request and mount a TLS secret. Replace these placeholders with your own values:

• INGRESS_NAME - Ingress resource name (hello-ingress)
• NAMESPACE - Namespace where Ingress and Service live (default)
• DOMAIN - testroot.net
• SECRET_NAME - TLS secret name to be created by cert-manager (tls-secret)
• SERVICE_NAME - hello-service
• PATH - URL path for routing (use / for root, or /hello for the sample app)



1. Ingress YAML header (save as ingress.yaml, section 1)

                                               apiVersion:networking.k8s.io/v1
                                               kind:Ingress
                                               metadata:
                                                 name:INGRESS_NAME
                                                 namespace:NAMESPACE
                                                 annotations:
                                                   kubernetes.io/ingress.class:"nginx"


                                               cert-manager.io/cluster-issuer:"sectigo-prod"


                                               nginx.ingress.kubernetes.io/ssl-redirect:"true"


2. Ingress spec TLS & rule (append to ingress.yaml, section 2)

                                               spec:
                                                  ingressClassName:nginx
                                                  tls:
                                                    - hosts:
                                                      - DOMAIN
                                                    secretName:SECRET_NAME
                                                  rules:
                                                    - host:DOMAIN
                                                    http:
                                                      paths:
                                                        - path:/PATH
                                                        pathType:Prefix
                                                        backend:
                                                          service:
                                                            name:SERVICE_NAME
                                                            port:
                                                              number:80


3. Apply Ingress

                                               kubectl apply -f ingress.yaml

4. Check Ingress status

                                               kubectl get ingress INGRESS_NAME -n NAMESPACE -o wide

Step 5 - Monitor Certificate Issuance

Verify cert-manager creates a Certificate and CertificateRequest, and confirm the HTTP-01 challenge succeeds. Replace these placeholders with your own values below:

• CERTREQ_NAME - Name of the CertificateRequest created by cert-manager
• SECRET_NAME - tls-secret (certificate secret)

1. List Certificates

                                               kubectl get certificate -A


2. Describe Certificate (SECRET_NAME)

                                               kubectl describe certificate SECRET_NAME -n NAMESPACE

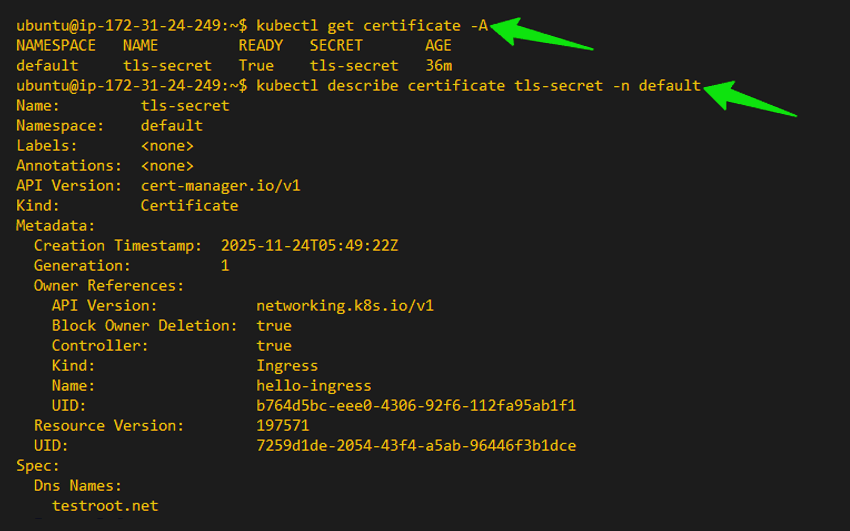

   Image Caption: Verifying the issued TLS certificate by checking the tls-secret status and describing the Certificate resource to confirm it is Ready.
3. Inspect CertificateRequest

                                               kubectl get certificaterequest -A
                                               kubectl describe certificaterequest <CERTREQ_NAME> -n <NAMESPACE>



   Image Caption: Output of kubectl get certificaterequest and kubectl describe certificaterequest, confirming that the tls-secret-1 request is Approved and Ready using the sectigo-prod ClusterIssuer.
   Tips:

   • If the Certificate shows READY=False:
     Run:
     kubectl describe certificaterequest <name>
     This will usually show the ACME server error such as DNS failure, unreachable HTTP-01 challenge, or account registration issues.
   • If HTTP-01 challenge fails with 404 (common issue):
     This means the Ingress is not routing to the ACME solver pod.
     Fix by checking:
     - ingressClassName matches the controller (e.g., nginx)
     - Ingress Controller Service has a reachable external/MetalLB IP
     - No conflicting Ingress rules

Step 6 - Verify Externally

Confirm TLS is served and the certificate is issued by your CA.

1. HTTP to HTTPS redirect check

                                               curl -I http://DOMAIN



   Expect: 308 redirect to https://DOMAIN
   Note: Replace DOMAIN with your actual domain name (for example, testroot.net).
2. TLS handshake and cert details

                                               curl -vk https://DOMAIN



   Image Caption: Verifying HTTP→HTTPS redirection (308) and testing the secured endpoint using curl -vk to confirm TLS 1.3, CA-issued certificate, and successful HTTPS response.
3. Verify Kubernetes secret contains TLS data

                                               kubectl get secret SECRET_NAME -n NAMESPACE -o yaml



   Image Caption: Output of kubectl get secret tls-secret -n default -o yaml showing the base64-encoded TLS certificate and private key.
4. (Optional) Verify Certificate in web browser

   Access your domain using a web browser, click the padlock icon in the address bar, and inspect the certificate details. Confirm that the certificate is issued by the CA and that the connection is fully secured.


   Image Caption: TLS certificate details displayed in the browser, confirming the CA as the issuer and secure connection for the domain.

Step 7 - Manual Renewal Test

Test cert-manager's ability to re-issue a certificate by deleting the existing Certificate and Secret.

WARNING: This temporarily deletes the TLS secret and causes brief downtime. Use only in test environments.

1. View current certificate expiry

                                                 kubectl describe certificate SECRET_NAME -n NAMESPACE

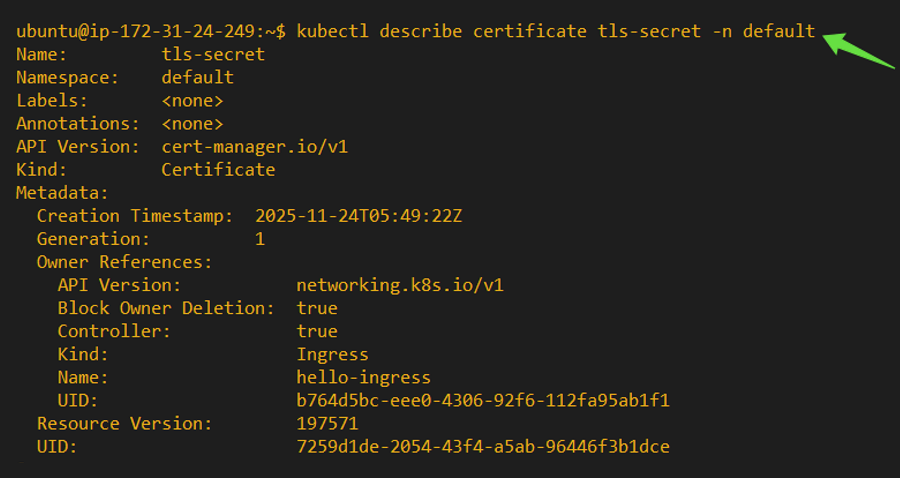

   Image Caption: kubectl describe certificate output showing cert-manager successfully issuing a valid TLS certificate (Status: Ready) for the domain testroot.net.
2. Force re-issue (exact two commands)

                                               kubectl delete secret SECRET_NAME -n NAMESPACE
                                               kubectl delete certificate SECRET_NAME -n NAMESPACE



   Note: Replace NAMESPACE with your actual Kubernetes namespace (for example, default).
3. Watch cert-manager recreate and reissue

                                             kubectl get certificaterequest -A
                                             kubectl get certificate -A
                                              kubectl get secret -n NAMESPACE



   Image Caption: Renewal triggered — cert-manager creates new CertificateRequest and Secret.

Quick Cluster Verification (Optional)

Run these checks to confirm your Kubernetes cluster, ingress controller, DNS, and network are correctly configured before starting the ACME installation.

1. Verify cluster health

                                               kubectl get nodes


2. Verify ingress controller is running

                                               kubectl get pods -n ingress-nginx


3. Verify ingress service has an external IP

                                               kubectl get svc -n ingress-nginx


4. Verify DNS resolution

                                               nslookup DOMAIN


5. Verify port 80 is reachable

                                               curl -I http://DOMAIN


This confirms:

• Cluster health
• Ingress controller availability
• EXTERNAL-IP assignment
• DNS resolution
• HTTP (port 80) reachability for ACME HTTP-01 challenge

Summary

You have successfully:

• Installed and verified cert-manager
• Created a CA EAB secret
• Created ClusterIssuer with HTTP-01 solver
• Deployed sample app and Service
• Created Ingress annotated for cert-manager
• Issued and verified TLS certificate
• Tested manual renewal and verified automatic renewal

SSL renewals now run automatically without manual intervention.

Final Placeholder Library (Universal + Kubernetes-focused)

Placeholder - Description

• ACCOUNT_EMAIL - Email used for ACME account registration
• CERT_MANAGER_VERSION - cert-manager version (v1.15.1+)
• CERTREQ_NAME - Certificate request resource name (auto-generated by cert-manager, appears in kubectl output)
• DEPLOYMENT_NAME - Name of the Deployment (hello)
• DOMAIN - Fully qualified domain (e.g., testroot.net)
• EAB_HMAC_KEY - External Account Binding HMAC Key
• EAB_KID - External Account Binding Key ID
• INGRESS_NAME - Name of the Ingress resource (hello-ingress)
• NAMESPACE - Kubernetes namespace (default: default)
• POD_NAME - Specific pod name when running kubectl debugging commands (from kubectl get pods output)
• SECRET_NAME - TLS secret created by cert-manager (tls-secret)
• SERVER - ACME server URL (e.g., https://acme.sectigo.com/v2/DV)
• SERVICE_NAME - Name of the Service (hello-service)
